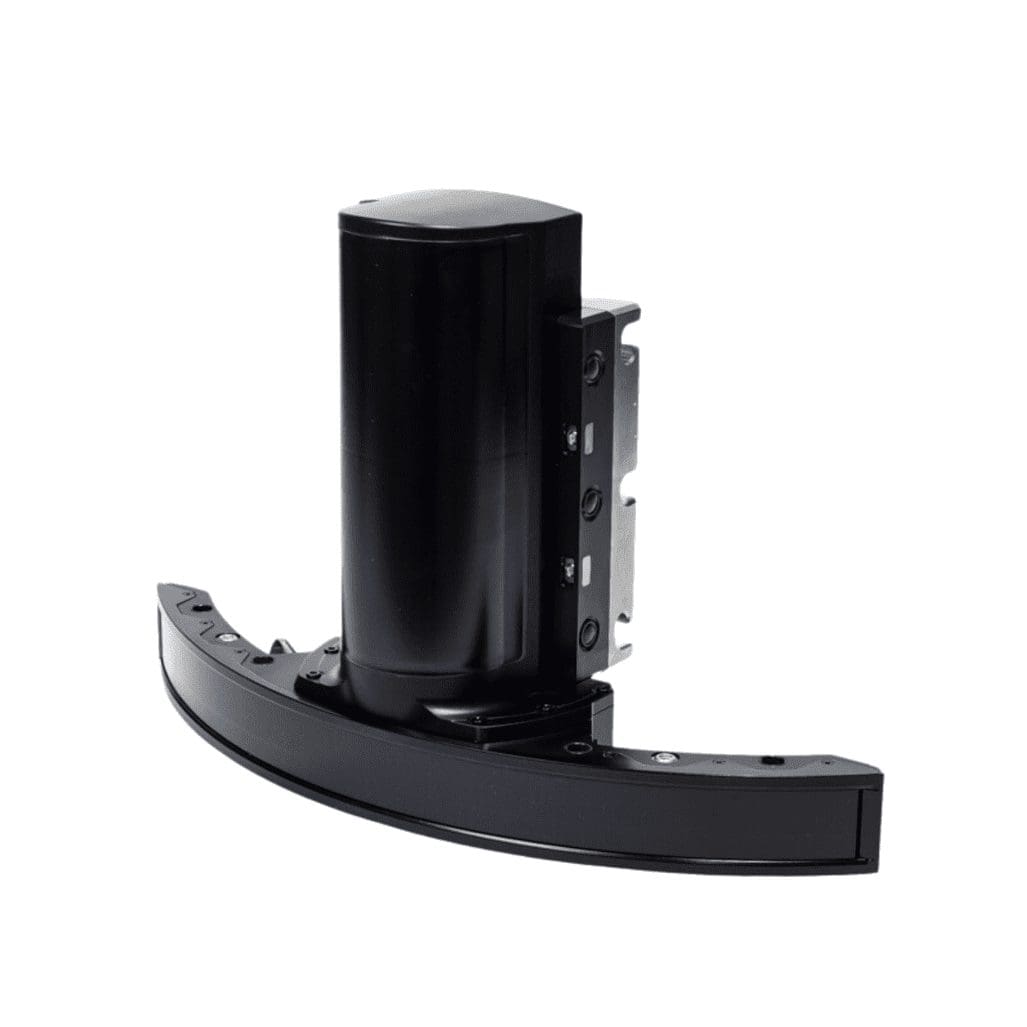

The NORBIT WINGHEAD i77h is a compact ultra-high resolution curved array broadband multibeam sonar offering tight integration with GNSS/INS (Applanix OceanMaster) that is designed for use in the most demanding operational environments such as under bridges or in rough sea conditions. Characterised further by a small form factor; low power draw and tight integration, WINGHEAD i77h installation can occur on surface survey platforms ranging from small USVs to large vessel permanent hull mounts.

Multibeam Sonar with Integrated Inertial Navigation System & Integrated NTRIP Client

80kHz Bandwidth

Roll-stablisation

Backscatter outputs

Multidetect

Pipeline mode

Simple ethernet interface

Integrated sound velocity probe 1024 dynamically focused beams

Mounting bracket included

FM & CW processing

Shallow water bathymetry

Pipeline & cable inspection surveys

Quay wall, bridge and structure

inspection surveys

Pond, river and estuary surveys

Harbor and lake surveys

USV & UUV

Coastal surveys
