Oceaneering Simplified Lock Out Tool (SLOT)

Oceaneering Simplified Lock Out Tool (SLOT)

Oceaneering Simplified Lock Out Tool (SLOT)

Available to rent from Ashtead Technology – the Oceaneering Simplified Lock Out Tool (SLOT)

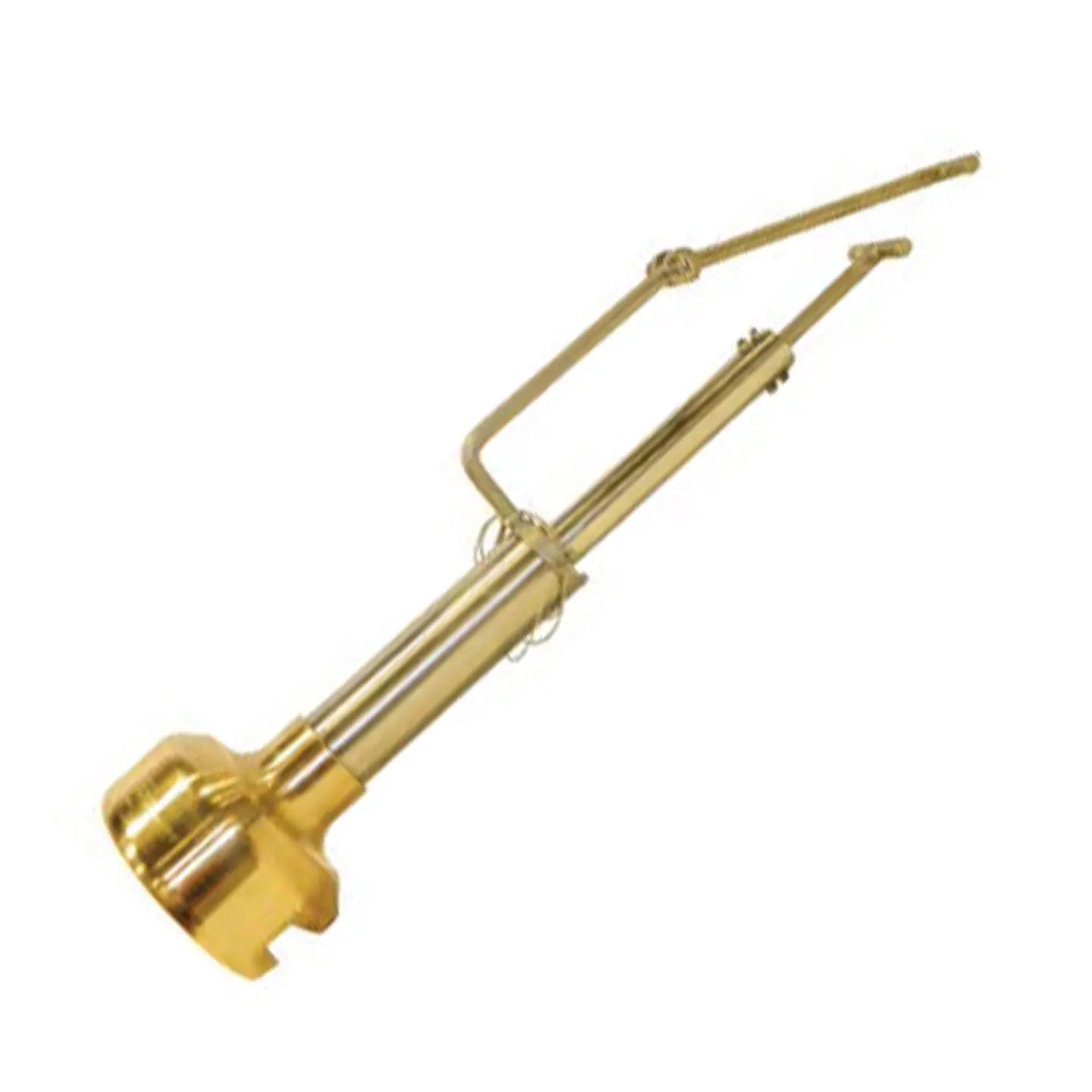

The Simplified Lockout Tool (SLOT) provides locking functions to valves with an API B interface located approximately 25-in below the manifold cover plate. The tool consists of a Nickel-Aluminum-Bronze alloy body, a Nitronic 50 Stainless Steel Acme thread screw with pinned -in ROV T-Handle, and an additional -in ROV T-Handle attached to the body to allow the ROV to stabilize. A cable for attaching the tool to the corrosion protection system is also provided.

  • Linear valve operations
