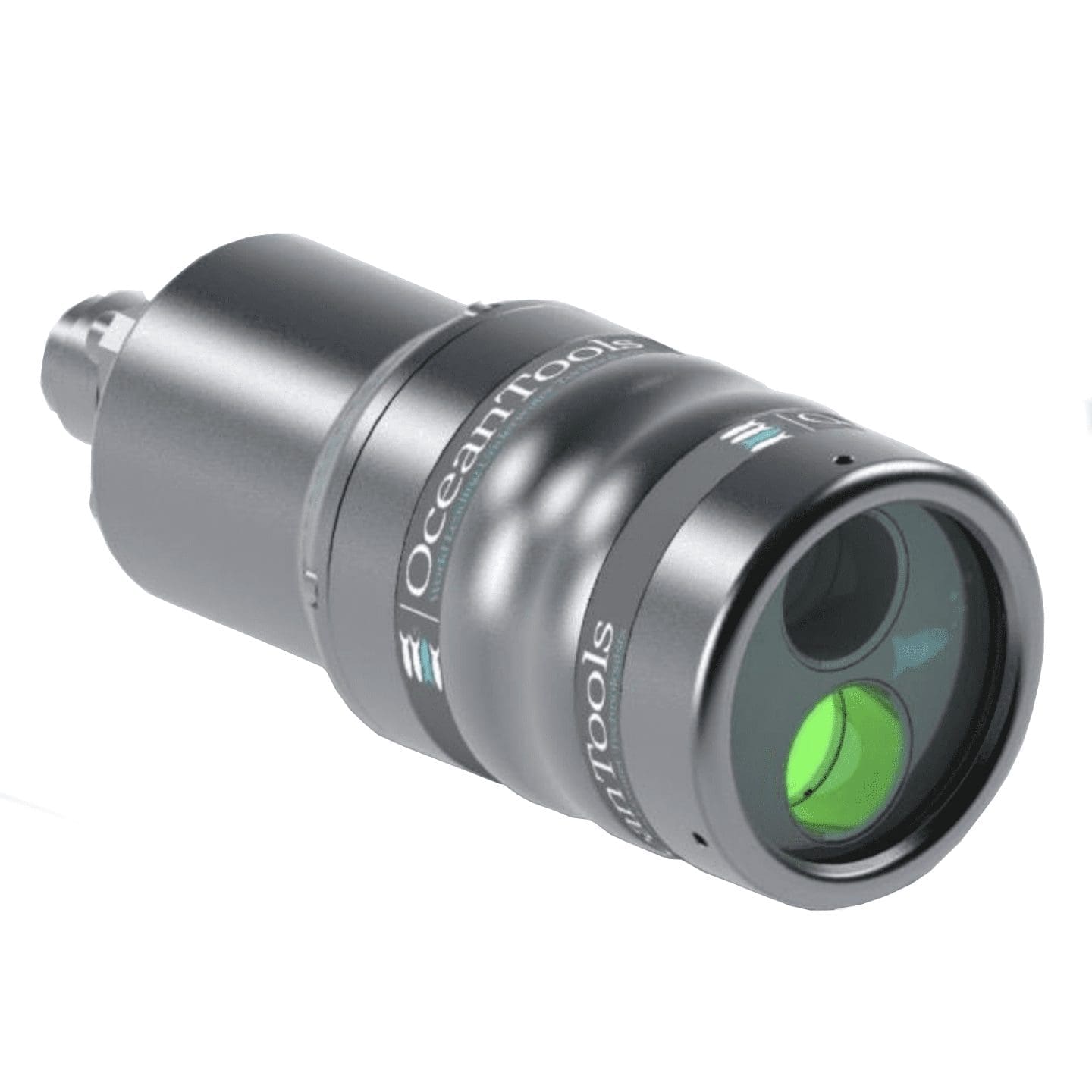

The ultra-compact AUV or ROV mounted D5 DyeTector may be used to detect leaks from subsea infrastructure such as manifolds, wellheads or pipelines if a suitable dye has been added to the infrastructure fluids, or during casing cementing operations to detect cement returns.
High intensity LED light is focused through lenses and filters to create a concentrated beam that is tuned to a specific wavelength to cause maximum molecular agitation and fluorescence of the dye. A sophisticated optical multiplier employs light amplification technology to detect fluorescence from the agitated dye molecules. Advanced detection electronics convert the measurements to digital data.
The powerful DyeTector technology is capable of detecting single photons of light. It can detect down to single digit parts per billion of dye dissolved in water and is approximately one hundred times more sensitive than the human eye. This makes it ideal for detecting the very smallest of leaks or traces of dye dosed cement. Detection can be carried out at a safe working distance, with advanced ambient light suppression technology allowing operation in high levels of background light.
The D5 DyeTector has an anodised aluminium housing and sapphire glass window with a standard depth rating of 1000 metres. It has been specifically designed for installation on AUV systems, with free-running data and low-power electronics to reflect the increasing use of AUVs for pipeline surveys. It can also be deployed on smaller observation class ROVs, with simple and intuitive DyeTection
software to display detection data at the surface.
