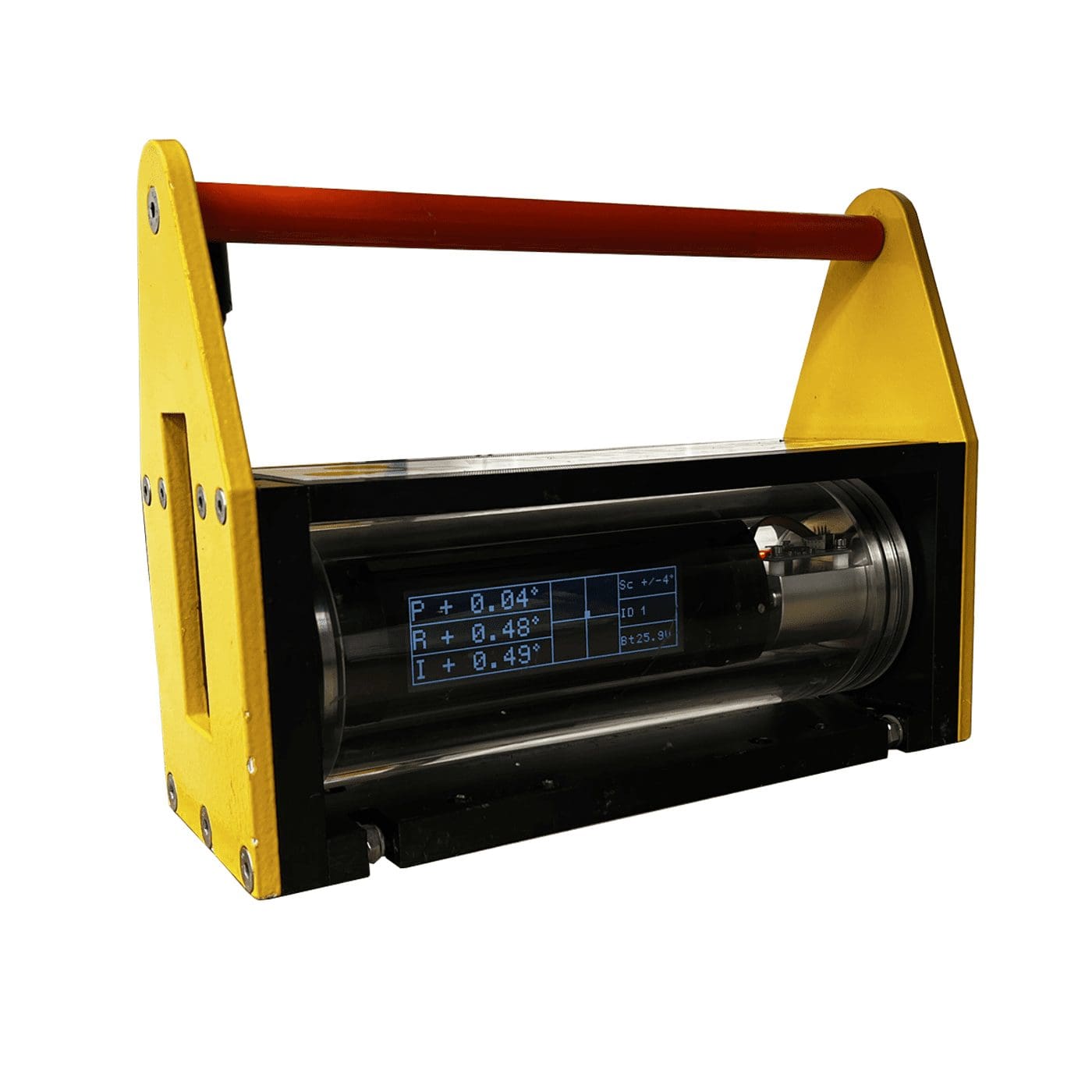

Ashtead Technology’s ROV/Diver deployed, precision inclinometer is a highly versatile and robust unit that is designed for easy configuration, deployment, and data acquisition.
The system has been designed for fully autonomous ROV/ Diver operation utilising the built in subsea display for inclination monitoring. There is also an option to include a LUMA wireless optical data telemetry modem set for real time communication direct to an ROV, allowing data communication with the surface monitoring computer via the ROV tether.
With an integral subsea display, the system provides pitch, roll, and inclination data read-out, as well as an in-built graphic X/Y bullseye visualisation of the inclination, providing simple visual feedback for structure levelling applications.
It can operate at depths up to 2,000 metres and has a battery life of up to 100 hours. Other features include an automatic sleep function to extend battery life and real-time battery voltage monitoring with local readout and remote reporting.
The diver levels dimensions are 35cm X 26cm X 12.5cm and weighs 8.5Kg.
