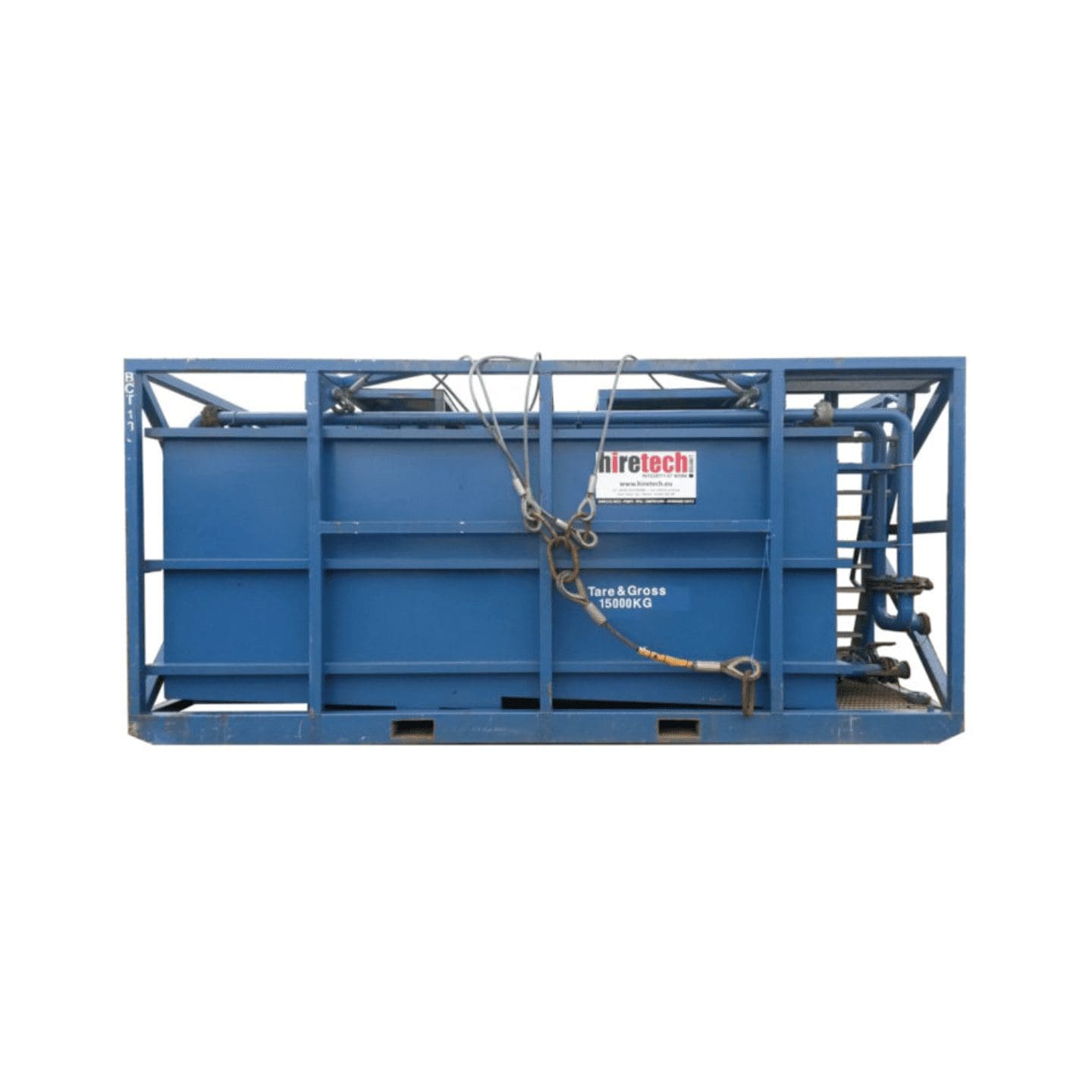

Zone I, Twin 100 BBL Mixing Tank, compete with Electric Driven Paddle Agitators. Designed and manufactured in accordance to DNV 2.7-1

Capacity: 2 x 100 bbls/4200 US/Gallons

Length x width x height: 6700 x 3000 x 3100 mm

Inlet connection per tank: 1 off 4″ Fig 206 Female (Thread)

Outlet connection per tank: 1 off 4″ Fig 206 Female (Thread)

Mainway opening c/w lid (Top) per tank: 600 mm x 400 mm

Manway opening tare & gross weight: 15,000kg

Fluid agitation: Electrically driven paddles (Zone 1)

Electric requirements lifting: 400 X | 60Hz | 32 Amp

Certification: DNV 2.7-1
